Description

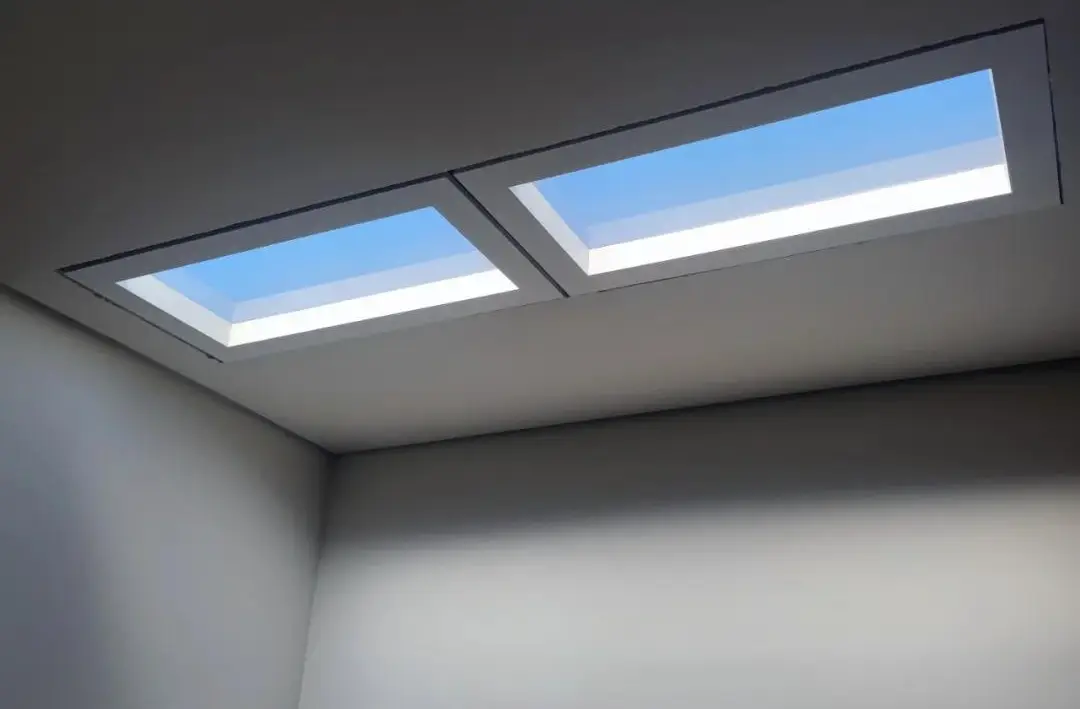

artificial skylight lighting is a recessed ceiling LED skylight lighting system. It uses LED light sources and optical diffusion structures to create a visual effect close to natural skylight indoors.

Model ER-4T-C is designed for windowless spaces or areas with insufficient natural light. It features adjustable color temperature ranging from 2200K to 18000K and luminous flux of 3000-12000lm.

Installation position: Recessed ceiling installation. Suitable for square suspended ceilings, gypsum board ceilings and modular ceilings. Before installation, confirm the cutout size, internal ceiling space, driver location, power supply and control wiring. Dimensions: L1146W300H53mm, unit weight 9.2kg, package size 1245360H130mm.

artificial skylight lighting Parameters

Item	Parameter
Type	fake roof windows
Artificial Skylights Name	artificial skylight lighting
Model Number	ER-4T-C
Light Source	LED
Installation Style	Recessed installation
Shape	Square
Input Voltage(V)	100-277VAC/50-60Hz
Rated Power	80W
Control Mode	App Control, Switch Control, Remote
Color Rendering Index(Ra)	95
Lamp Luminous Efficiency(lm/w)	100
Lamp Luminous Flux(lm)	3000lm-12000lm
Color Temperature(CCT)	2200-18000K
Beam Angle	180°
Driver	Constant Current, High PF, Flicker-free

artificial skylight lighting Sizes

L1146W300H53mm Product Weight（kg）: 9.2KG PCs/ Ctn: 1 Single package size: 1245360H130mm

LED Ceiling Panel Artificial Skylight: Structure & Optics

Adopts LED light source, constant current driver, high PF and flicker-free design with Ra 95 and 180° beam angle. Rated power 80W, 100 lm/w, luminous flux 3000-12000lm, color temperature 2200-18000K. Direct glare is reduced via diffusion and sky simulation layers.

Artificial Skylight for Drop Ceiling: Installation Compatibility

Square recessed structure with dimensions L1146W300H53mm. Applicable to modular ceilings, gypsum board ceilings and reinforced ceiling surfaces. Before purchase, check keel spacing, cutout dimension, space for driver installation and 100-277VAC/50-60Hz power supply. 1 piece per carton, weight 9.2kg. Access panel is recommended.

Smart Artificial Skylight: Control Methods

Supports App Control, Switch Control, Remote. Color temperature and brightness can be scheduled by time period, e.g. neutral daylight in the morning and warm light in the evening. Ideal for offices, meeting rooms, residential basements and other spaces requiring scene switching. Flicker-free performance is maintained during dimming.

Artificial Daylight Skylight: Application Scenarios

Windowless offices, co-working spaces, meeting rooms; basements, underground recreation rooms, corridors, stairwells; classrooms, training rooms, libraries; clinics, waiting areas, public zones in senior care facilities; hotel inner areas, exhibition halls, retail spaces; residential cloakrooms, bathrooms, dark corners of kitchens, attics.

Artificial Skylight for Basement: Lighting for Dark Areas

Basements usually lack natural daylight. artificial skylight lighting creates a skylight appearance on the ceiling and improves spatial orientation and brightness. It can serve as lighting and visual supplement for rental premises and underground commercial zones where windows or openings cannot be made. It still needs to meet illuminance standards according to room usage and cannot replace fire emergency lighting.

Artificial Skylight Installation: Purchasing & Installation Notes

Confirm model ER-4T-C, dimensions, input voltage, control mode and ceiling conditions before purchase. Installation shall be completed by professionals. Inspect driver heat dissipation, wiring, fixing and dimming compatibility. For humid locations, verify on-site protection rating and local codes. Package size 1245360H130mm, 1 piece per carton.

Frequently Asked Questions

Q1: Is artificial skylight lighting suitable for windowless offices or basements? A: Yes. It adopts recessed ceiling installation with adjustable color temperature from 2200K to 18000K, luminous flux 3000-12000lm, Ra 95 and constant current flicker-free driver. It can simulate sky effects ranging from warm light to natural daylight. Quantity shall be configured according to room area, ceiling height and illuminance requirements, with ceiling space and power supply reserved.

Q2: What is the difference between it and ordinary LED panel lights? A: Ordinary panel lights mainly deliver uniform illumination; artificial skylight lighting creates skylight visual effects through LED light source, diffusion layers and 180° beam angle. It supports App, switch and remote control, with color temperature range 2200-18000K. During procurement, check ceiling cutout, driver position, unit weight 9.2kg and package dimensions.
